$31.12The Story

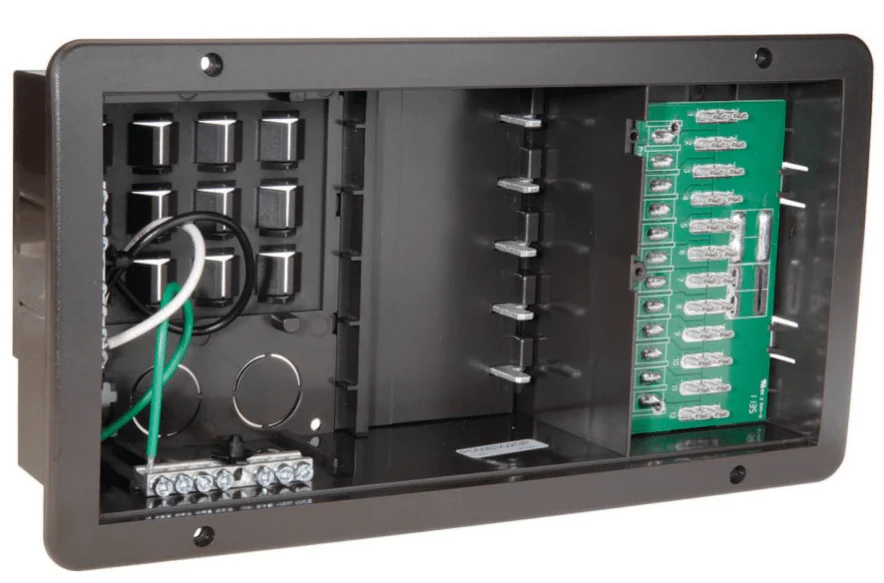

If you are building or retrofitting an RV with many AC circuits and need an AC/DC distribution panelĀ that can handle 30A shore power, consider the Progressive Dynamics PD5000 AC/DC RV Distribution Panel. This panel can provide for both your AC and DC distribution needs:
- Provisions for 30Ā ampere AC main and up to 9 AC branch circuits
- Space for up to 12 fused DC branch circuits for 12-volt lighting and DC appliances
Key Features: Progressive Dynamics PD5000 AC/DC RV Distribution Panel
- AC/DC distribution panel, 22 circuit capability
- Generous wiring space for easy installationā also reduces costly wiring errors
- Built-in wire strain relief for each branch circuit. Saves over 50% on installation costs
- Accepts rated fuses up to 30 Amp ā eliminates auxiliary fuse panels for slide-outs and leveling jacks saving you even more money
- Attractive light weight panel design made from black or brown impact-resistant high temperature polymers

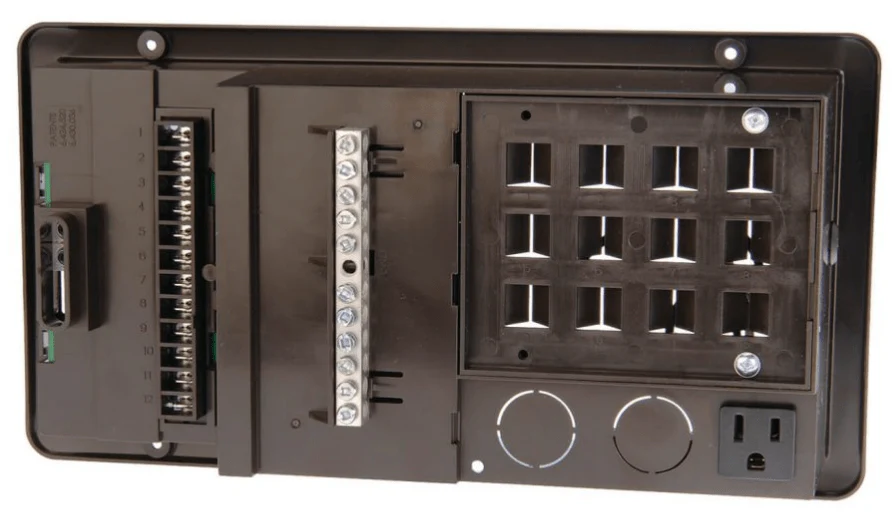

- All 12 VDC branch circuit connections located on outside rear of panel ā reducing installation time and costly errors
- High current 12 VDC input power terminal strip provides easy connection point for battery and converter
- Optional: 120 VAC, 15 Amp outlet available for power converters and other AC appliances
- Optional: 11 terminal negative 12 VDC bus bar provides common connection point for all DC circuit negative wires
Specifications: Progressive Dynamics PD5000 AC/DC RV Distribution Panel
| Dimensions | 13.4ā³ W x 7.1ā³ H x 4.0ā³ D |
| Cut-out Size | 12.25ā³ W x 5.875ā³ H |
| Weight | 1.45 lbs |
Ā
Documents: Progressive Dynamics PD5000 AC/DC RV Distribution Panel
PD5000 Wiring with Converter
